Location：Home > Inline mixer > Multistage emulsifying pump > Three-Stage Inline Mixer >

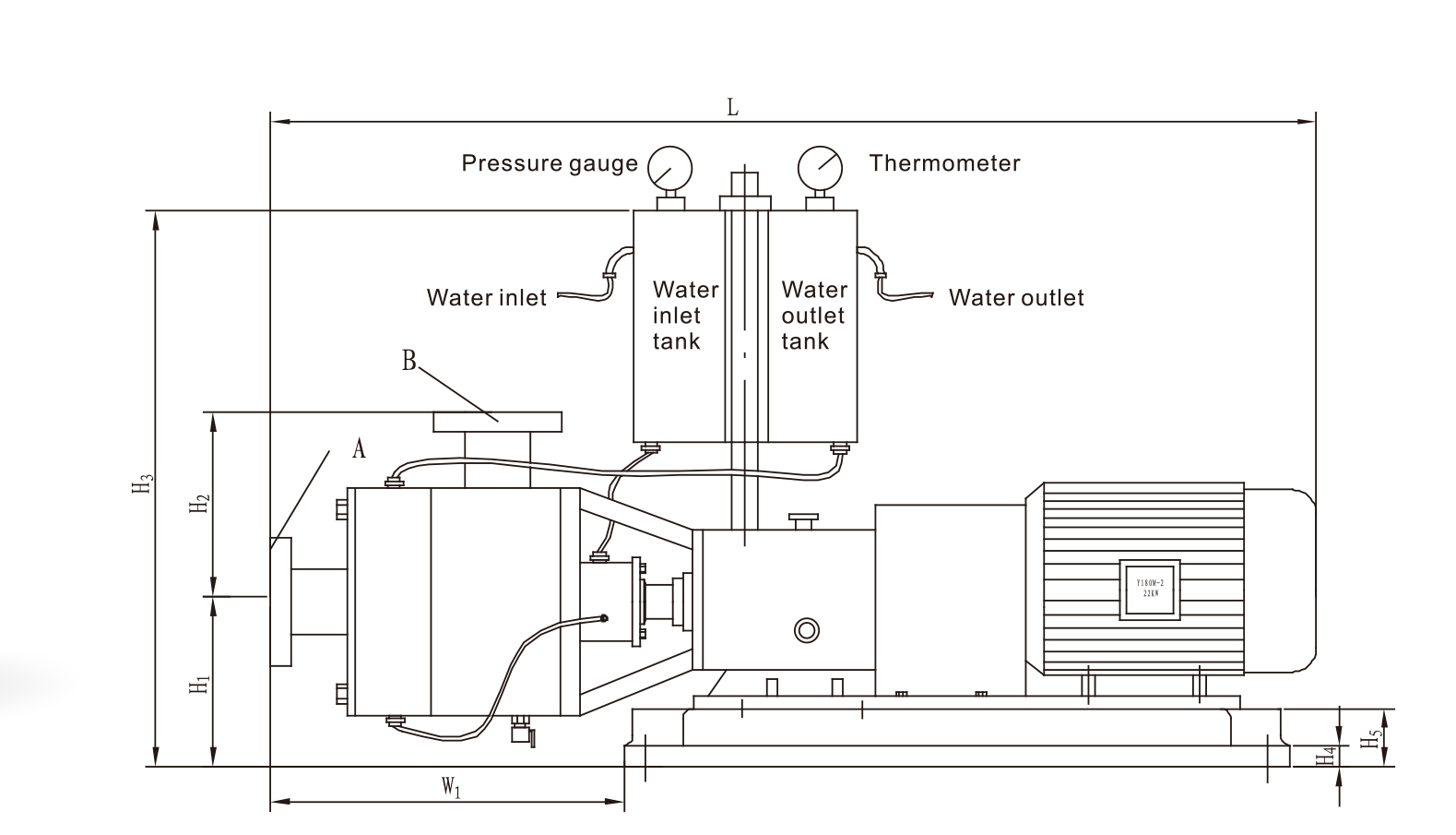

Dimensions installation diagram

Name		Power (KW)		Speed (r/min)		Flow (m³/h)		Lift(M)		L		W1		H1		H2		H3		H4		H5		FlangeA		FlangeB		kg
HIIE405		4		2930		2.5		20		1396		355		182		180		480		12		50		50		40		150
HIIE410		7.5		2930		5.5		20		1396		355		182		180		480		12		60		50		40		190
HIIE415		11		2930		11		20		1503		387		220		202		573		12		50		65		50		279
HIIE420		18.5/22		2930		20		20		1634		412		270		230		603		20		80		80		65		407
HIIE435		37		2930		35		20		1905		446		300		248		693		20		90		100		80		543
HIIE450		55		2930		48		20		2077		463		360		270		723		20		100		100		80		733
